F9060 Series Isolating Flushing Penstock

■ General Information

Design Standard: Manufacturer's Standard, 4-Sides-Sealing Type Testing Standard：BS7775 Wall Mounting One Actuator Drives One Penstock, or One Actuator Drives Two Penstocks Sizes: 1500X150 - 4000X200

■ Fields Of Application

Water Discharging For Active-Carbon Filter Tank Industrial Water Discharging

Keywords:

Isolating Flushing Penstock

Discharging Penstock

Inquiry

Product Series:

Isolating Flushing Penstock

■ Unique Design

Wall mounting, design for anchor bolting, and sponger rubber seal between penstock and wall, grouting is not necessary
Stainless Steel hingles between door and frame
One actuator drives two penstocks, the two penstocks keep exact pace during opening or closing
The profile seal is vulcanized ( not bonded by adhesive ) into ONE-PIECE for long service life
Modulating type, penstocks are able to remain at any partial opening position
The penstock is fixed on the wall by removable claws, to avoid problem happening in case anchor bolt drilling to metal parts in concrete

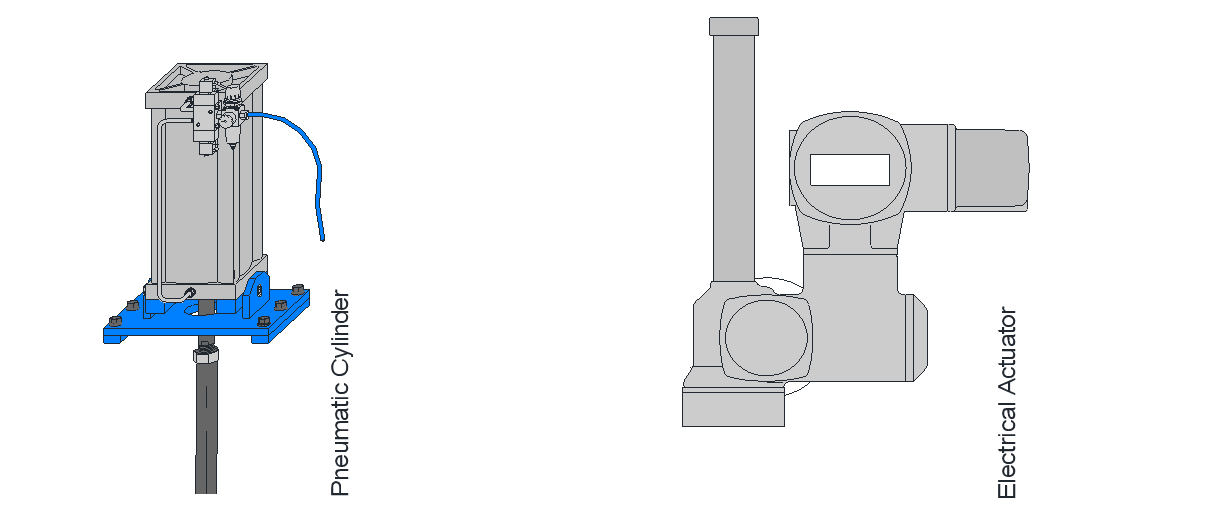

■ Operation

Pneumatic Cylinder
Electrical Actuator

■ Materials

Parts	Materials
Frame	Stainless Steel：ANSI SS304, SS316, SS316L, DIN EN 10088-3 1.4301, 1.4401, 1.4571
Door	Stainless Steel：ANSI SS304, SS316, SS316L, DIN EN 10088-3 1.4301, 1.4401, 1.4571
Tilting Arm	Stainless Steel：ANSI SS304, SS316, SS316L，DIN EN 10088-3 1.4301, 1.4401, 1.4571
Arm Rack	Stainless Steel：ANSI SS304, SS316, SS316L，DIN EN 10088-3 1.4301, 1.4401, 1.4571
Hingle	Stainless Steel ANSI SS316L
Profile Seal	EPDM or NBR
Extension Spindle	Stainless Steel：ANSI SS304, SS316, SS316L, DIN EN 10088-3 1.4301, 1.4401, 1.4571
Fastener	Stainless Steel：A2-70, A4-70
