Products

Product Series

F9000 Series Square Penstock, 4-Sides-Sealing Type

Design Standard：BS7775, 4-Sides-Sealing Type Testing Standard：BS7775 Sizes：200X200-3000X3000mm Working Head: On / Off Seating, Max. 4/6/10m W.C. Mounting: Wall Mounting

F9010 Series Weir Penstock, 4-Sides-Sealing Type, Downward Opening

Design Standard：BS7775, 4-Sides-Sealing Type, Downward Opening Testing Standard：BS7775 Sizes: 200X200-3000X3000mm Working Head: On/Off Seating, Max. 4m W.C. Mounting: Wall Mounting

F9060 Series Isolating Flushing Penstock

Design Standard: Manufacturer's Standard, 4-Sides-Sealing Type Testing Standard：BS7775 Wall Mounting One Actuator Drives One Penstock, or One Actuator Drives Two Penstocks Sizes: 1500X150 - 4000X200

F9500 Series Channel Penstock, 3-Sides-Sealing Type

Design Standard：BS7775, 3-Sides-Sealing-Type Testing Standard：BS7775 Sizes：200X200-3000X3000mm Mounting: Channel mounting, Wall Mounting

F9510 Series Weir Penstock, 3-Sides-Sealing Type, Downward Opening

Design Standard：BS7775, 3-Sides-Sealing Type, Downward Opening Testing Standard：BS7775 Sizes: 200X200-3000X3000mm Mounting: Wall Mounting

F9520 Series Handstop

Design Standard：BS7775, 3-Sides-Sealing Type Testing Standard：BS7775 Sizes: 200X200-600X1200mm

F9610 Series Flap Valve

Design Standard：Manufacturer's Standard, 4-Sides-Sealing-Type Testing Standard：BS7775 Sizes：200X200-1600X1600mm Mounting: Wall Mounting

F3900 Series Knife Gate Valve

Design Standard: Manufacturer's Standard, 2PCS-Body-Type Testing Standard: EN12266-1 Sizes: DN50-DN1000 Norminal Pressure: PN1 / PN3 / PN6 / PN10 Connecting Ends: Wafer Flangd Ends, Drilled to EN1092 Face-To-Face Dimensions：EN558-1 SERIES 20

F3500 Series Resilient-Seated Gate Valve

Design Standard: EN1171 Testing Standard: EN12266-1 Sizes: DN40-DN600 Norminal Pressure: PN10 / PN16 / PN25 Connecting Ends: Double RF Flanges, Drilled to EN1092; Socket Ends Face-To-Face Dimensions：EN558-1 F4，F5, BS5163

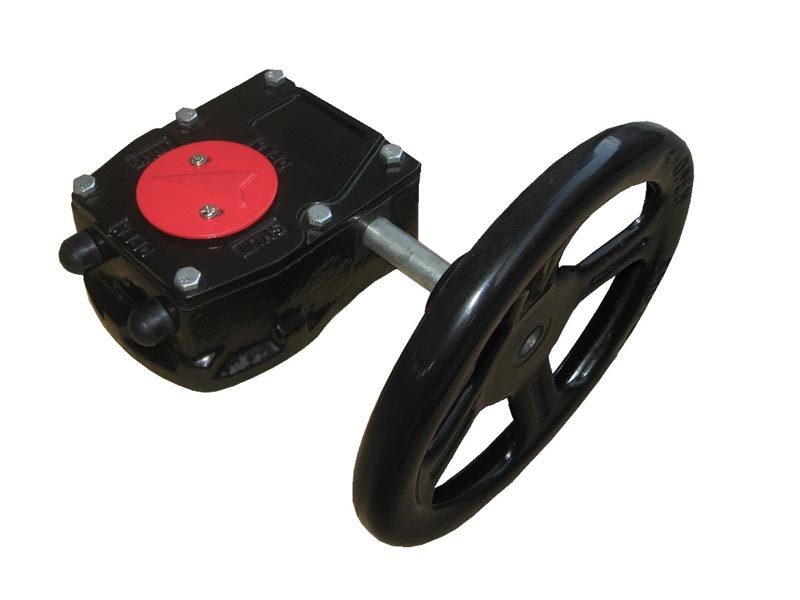

FG200 Series Quarter-Turn Gear Box

Design Standard：Manufacturer's Standard Sizes：250Nm - 24,000Nm Flanges： IS05211

F2600 Series Rubber-Lined Butterfly Valve

Design Standard: API609 / EN593 Testing Standard: API598 / DIN EN12266-1 Sizes: 1.5”-40” / DN40-DN1000 Pressure Rating: 150 PSI / 200 PSI, PN6 /PN10 / PN16 Connecting Ends：Wafer / Lug / Double Flanges, Multi-Drilled To EN1092 PN10/16 & ANSI B16.5

F2800 Series Double Eccentricity Butterfly Valave

Design Standard：EN593 Testing Standard：DIN EN12266-1 Sizes：DN150-DN4000 Norminal Pressure：PN6 / PN10 / PN16 / PN25 Connecting Ends: Double RF Flanges, Drilled to EN1092 Face-To-Face Dimensions: BS5155, EN558-1

< 1 2 >
